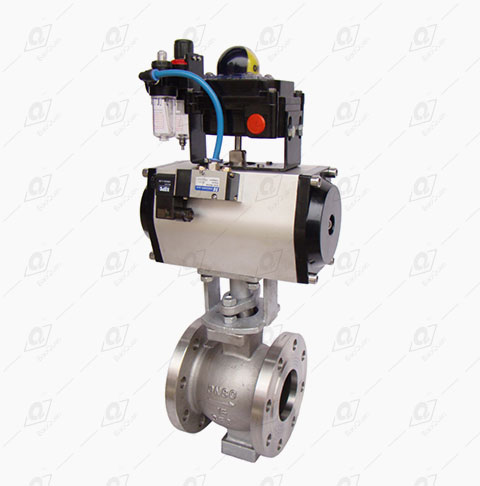

V Type Ball Valve
■ 產品概述
V型球閥采用金屬硬密封結構，V型閥芯及金屬閥座在回轉過程中，球芯的V型缺口與閥座做比例流量調節，并且密封面緊密配合，V型口具有強
大切斷介質、雜質的功能，避免閥門卡死現象發生，并具有自潔功能；配合氣動執行器，可以實現90°范圍的啟閉，跟定位器配套實用可實現遠程
微電腦控制閥門流量開度，可實現比例調節：與二位五通電磁及控制箱配套實用，可實現開關控制。
■ 適用介質：
適用于含纖維、固體顆粒、漿料等介質。因些可廣泛用于造紙、石油、化工、化纖、電力、冶金、制藥及環保等行業。
口徑：DN25~DN250/1-10"(對夾)、DN25~DN600/1-24"(法蘭)
壓力等級：DN10/16/25/40/65、ANSI 150LB/300LB
■ PRODUCT INTRODUCTION
V type ball valve use hard seal material structure, V-type valve core and metal seat in the rotation process, the V-notch ball core and valve
seat proportional flow control, and and sealing surface work closely,V-type has a powerful cut off the medium, impurities function to avoid the the
valve stuck phenomenon, and has a self-cleaning function; with pneumatic actuators can achieve the range of 90 ° to open and close, with the
locator supporting the use of remote microcomputer to control the degree of opening of the valve flow ratio adjustment;supporting the use of two
five-way solenoid control box, switch control.
■ APPLICATION MEDIUM
Suitable for containing fiber, solid particles, slurry and other media, it can be widely used for paper, petroleum, chemical industry, chemical
fiber, electricity, metallurgy, pharmaceutical and environmental industries.Nominal Through Diameter: DN 25 ~DN250 / 1-10"￡Lug/ Clip-on )
DN25 ~ DNV600/ 1-24"Nominal Pressure: DN 10/DN16/DN25/DN40/DN65 ANSI 150LB/300LB
